Truck Specific Layout
For your convenience we have started the process of providing specific examples of Layouts for some of the most common and popular trucks on the market. At this time, we do not have all trucks listed - but will continue to work on it whenever able.
Collapsible content
Click for Truck Layouts
Ford:
F150
F250/F350
Ranger
Maverick
Nissan:
Frontier
Titan
Dodge:
Ram 1500
Ram 2500/3500
GMC:
Sierra 1500
Sierra 2500/3500
Canyon
Chevy:
Silverado 1500
Silverado 2500/3500
Colorado
Hyundai:
Santa Cruz
Jeep:
Gladiator
Universal Truck Layouts
-
Mid-Size Layout
-
Full-Size Layout
-
Straight Wall Layout
Assembling the Tmat Cargo System

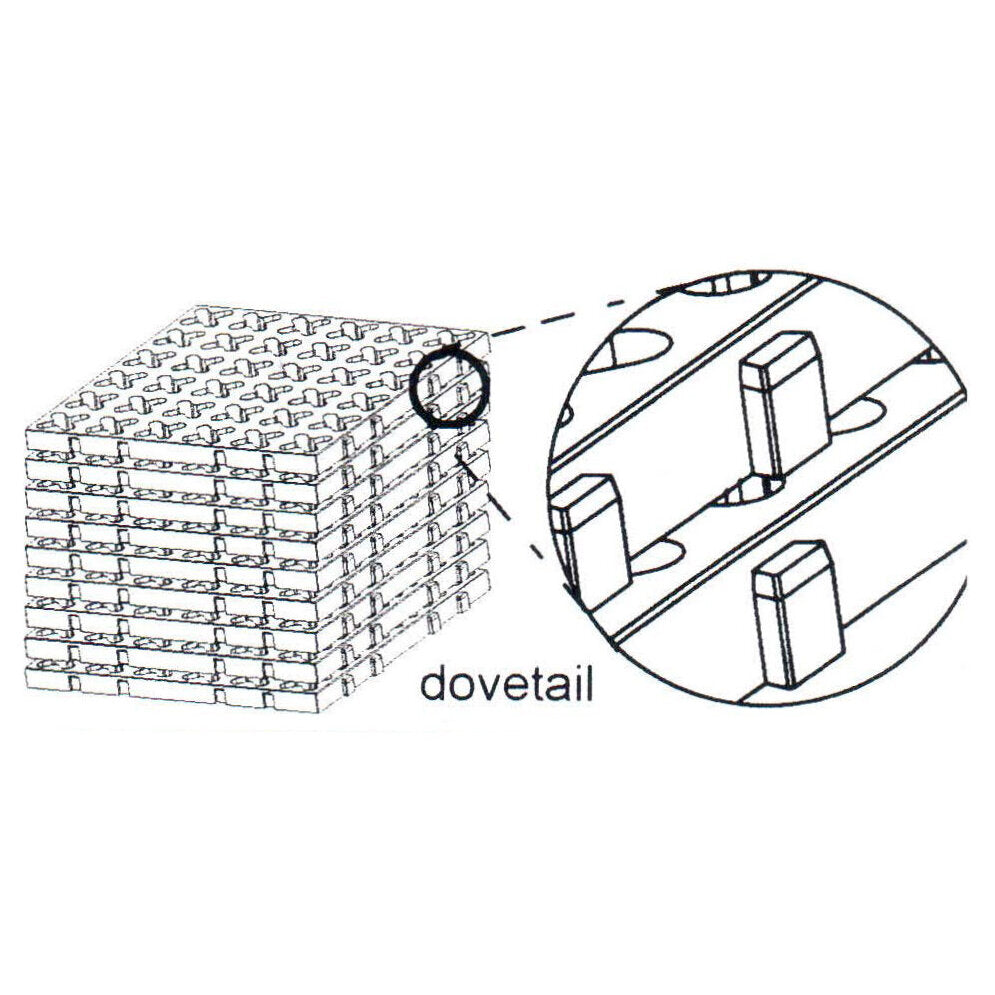

Step 1. Estimate how many panels you'll need by taking measurements of your cargo area. Each panel measures roughly 12" sq. by 3/4" in height. Stack all panels keeping the male dovetails facing the same direction.

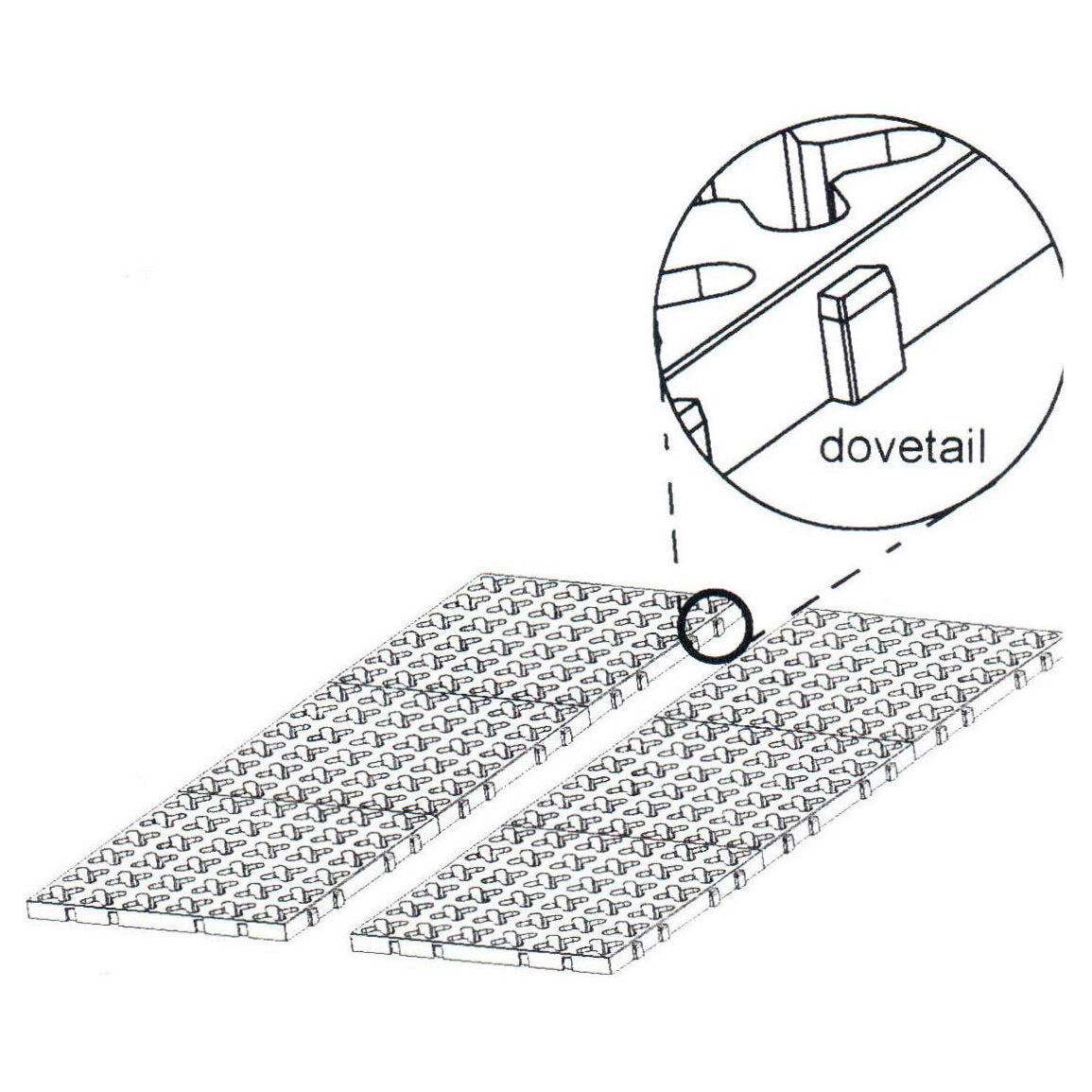

Step 2. Start assembling the panels outside of your vehicle or on your tailgate row by row working left to right keeping the male dovetails facing to the bottom and the left.

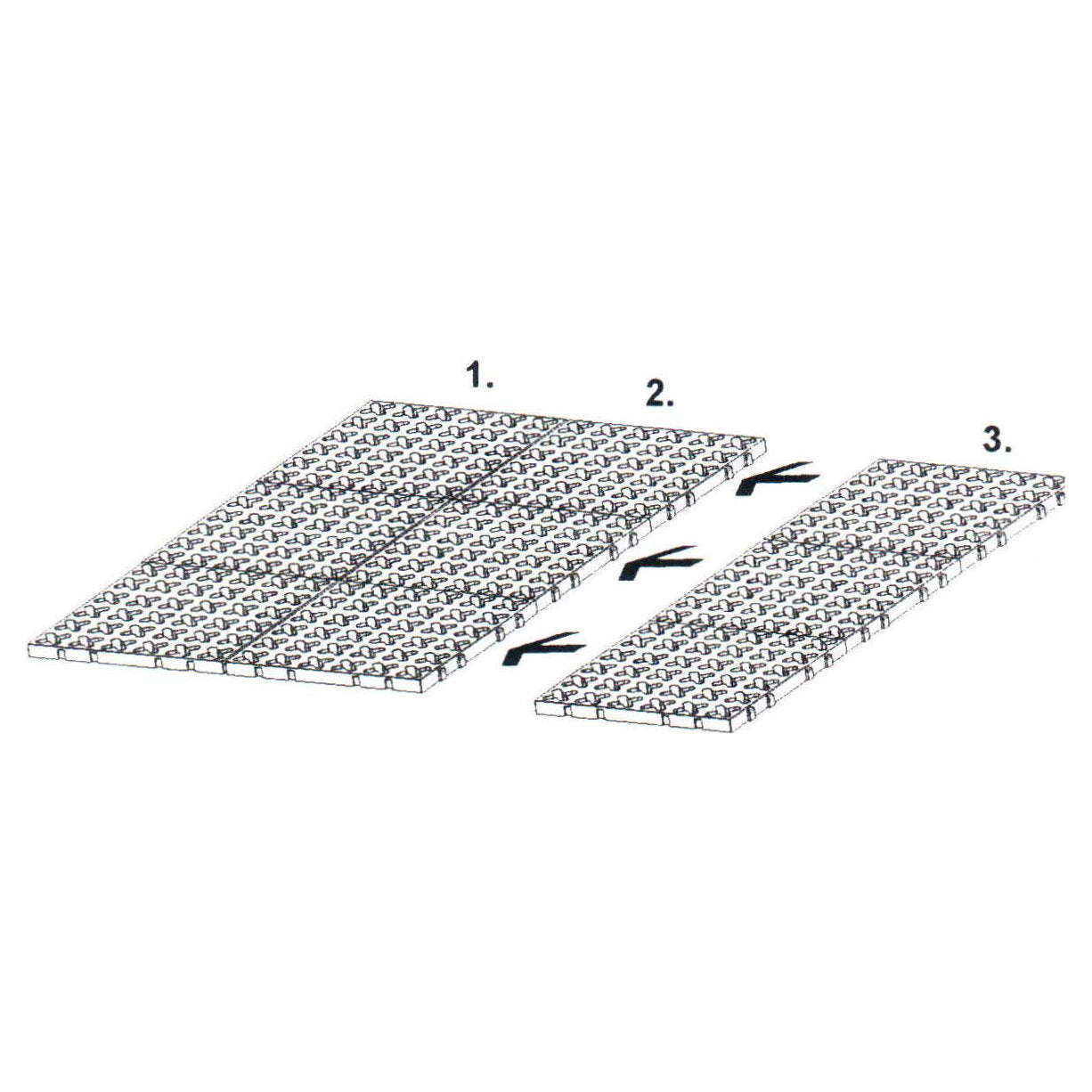

Step 3. Working back to front, assemble the full row panels by snapping the entire rows together. Make sure all the panels are completely secure with one another.

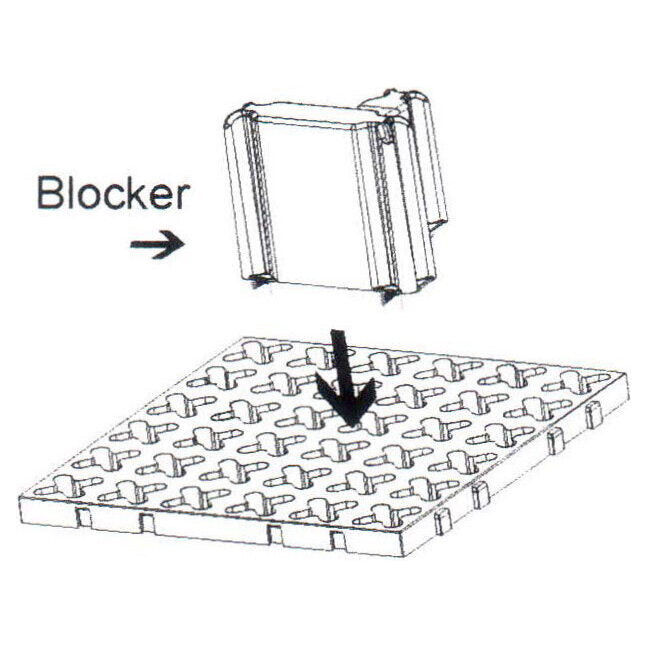

Step 4. Insert the blockers wherever you need by lining up the blocker pegs with the panels and inserting with an even pressure.
